BDP-95 USB vs. DLNA Streaming Playback

May 06, 2011

RightMark Audio Analyzer 6.2.3 test


Testing chain: OPPO BDP-95 Stereo RCA line-out to Creative X-Fi Elite Pro line-in
Sampling mode: 24-bit, 96 kHz

BDP-95 player level: Level: 95 (-2dBfs relative to peak output)

DLNA Server: Asset UPnP - XP Release 3 Wired Ethernet (not wireless)
USB Medium: Verbatim 16 Gbyte flash drive



Summary

TestBDP_95_USB_Playback3BDP_95_DLNA_Stream
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.05+0.01, -0.05
Noise level, dB (A): -112.4-110.6
Dynamic range, dB (A): 113.1111.0
THD, %: 0.00020.0002
IMD + Noise, %: 0.00090.0010
Stereo crosstalk, dB: -105.2-103.1

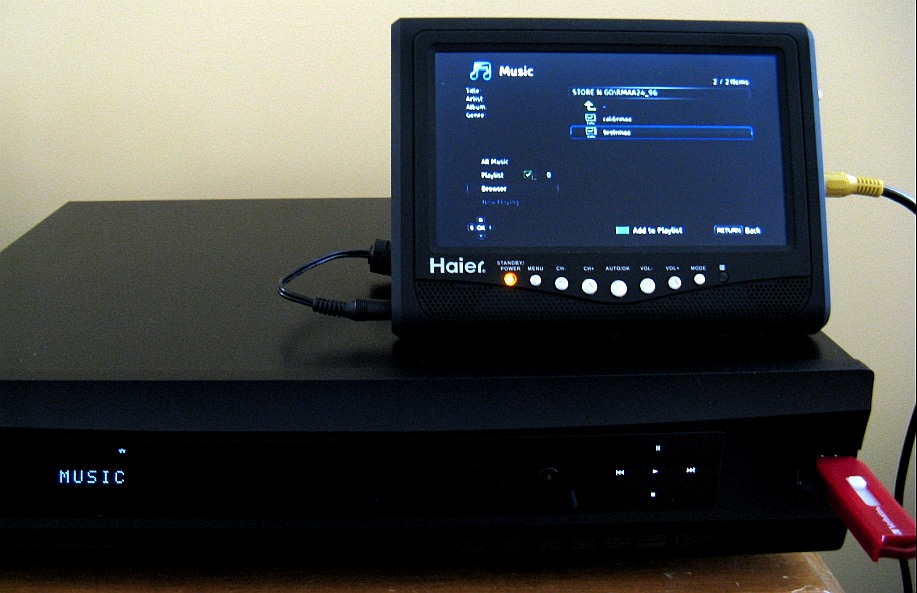

BDP-95 front panel with USB drive and 7" Haier monitor:

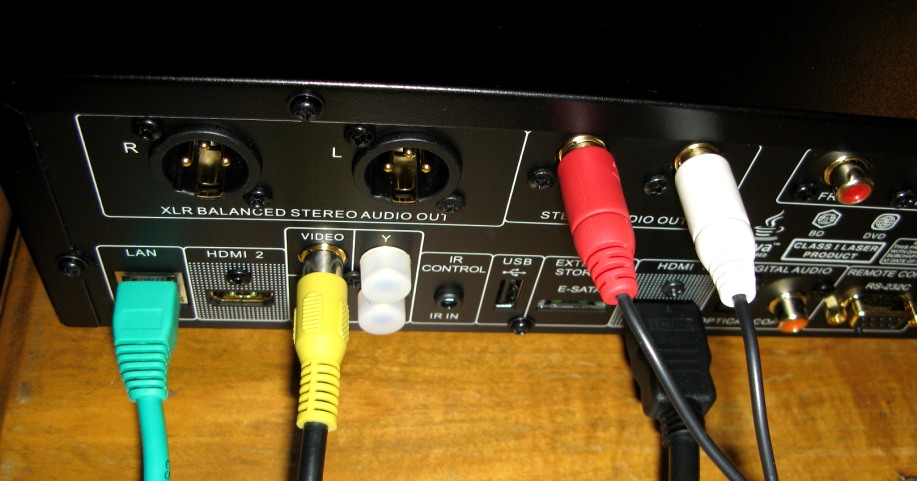

BDP-95 rear panel with connections used in these RMAA tests:

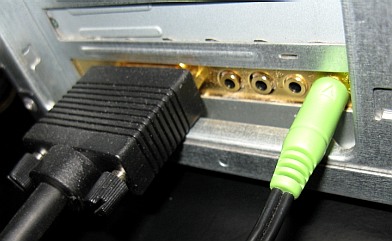

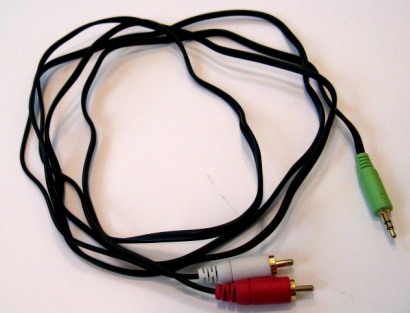

Stereo cable, RCA phono to 1/8" stereo miniplug and X-Fi Elite Pro sound card line-in connection:

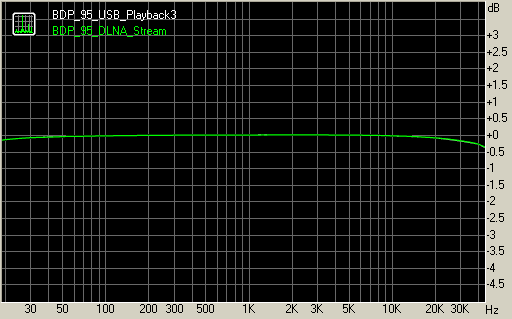

Frequency response

Spectrum graph

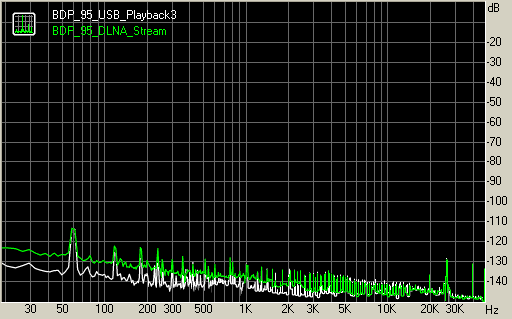

Noise level

Spectrum graph

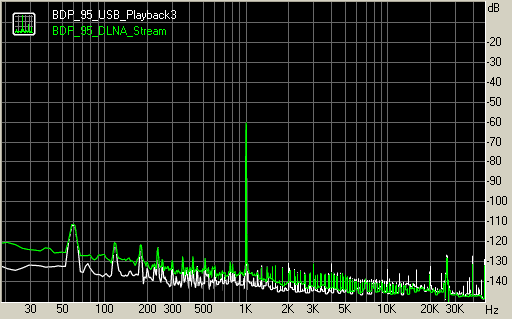

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

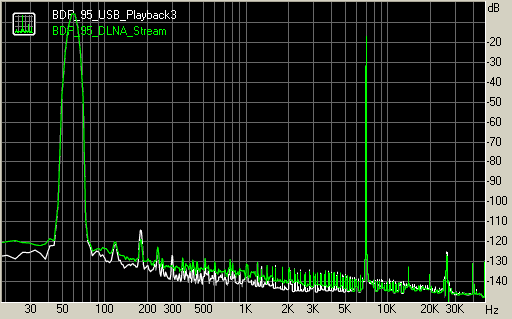

Intermodulation distortion

Spectrum graph

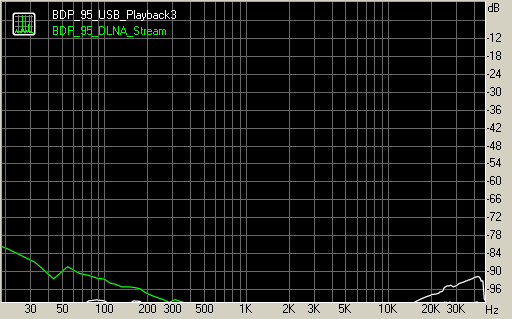

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.2.3
