BDP-95 Wave USB-in to Stereo Line-Out

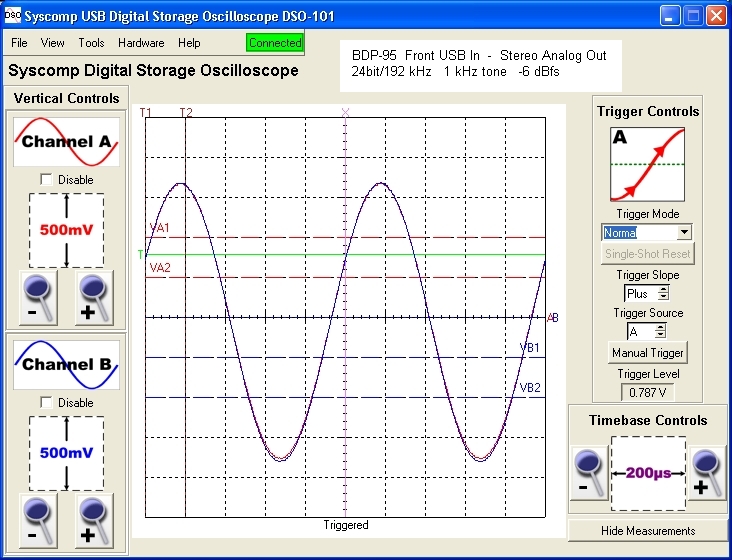

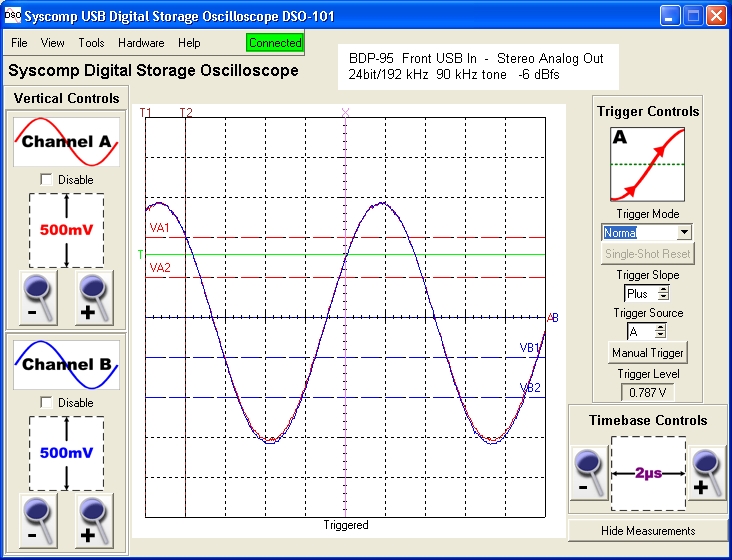

3 MHz BW scope traces showing sine-wave response of OPPO BDP-95 at stereo line-out for 24bit/192 kHz wav files playback via front USB input.

Waves are single stereo tones digitally synthesized at -6 dB full scale for 1 kHz, 20 kHz and 90 kHz.

The response at 90 kHz is -1.6dB down, relative to response at 1 kHz, consistent with the spec.
