Verifying 24 bit Playback
Feb 16, 2011
This technique describes a simple method of verifying 24 bit playback in a digital audio system.
Several low level (in the lowest 8 bits) 24bit/96 kHz test tone wave files are played back in a listening test.
Measurement Setup
Several low level wave (uncompressed PCM) files were synthesized programatically with a 30 sec constant test tone at 1 kHz.
Each wave file contained a tone with higher intensity, corresponding to progressively using more of the lowest order bits
of the 24bit/96 kHz wave file samples.
The wave files were played back using three different methods:
- WinXPsp3: Creative Technologies MediaSource 5 Player with X-Fi Elite Pro sound card with SPDIF output to receiver
- Win7/64bit: Foobar2000 + ASIO plugin playback over HDMI output to receiver
- DVD-Audio disk playback using OPPO BDP-83 Blu-ray player and HDMI output to receiver
All 3 methods gave identical results in a listening test demonstrating correct 24 bit playback. The remainder of this article will

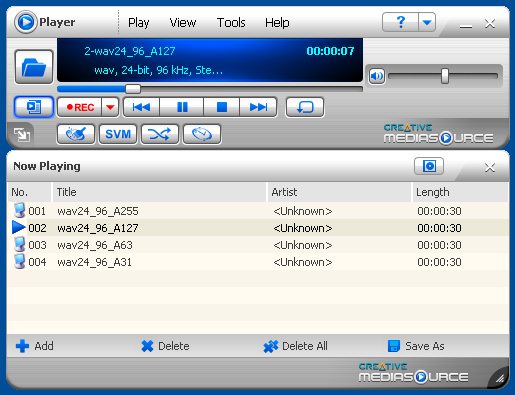

discuss the first method above. The MediaSource playlist and player is shown below:
The sample wave files used in this test are:
- wav24_96_A255.wav Amplitude: 255 (or binary 11111111) 8 lowest bits
- wav24_96_A127.wav Amplitude: 127 (or binary 1111111) 7 lowest bits
- wav24_96_A63.wav Amplitude: 63 (or binary 111111) 6 lowest bits
- wav24_96_A31.wav Amplitude: 31 (or binary 11111) 5 lowest bits
(Note that the higher order bits in the sample data of the wave file will be either zero (for positive values during the sine wave cycle)
or all 1 (for negative values) for a given sample because of the 2's complement signed integer represention of 24bit integer samples).

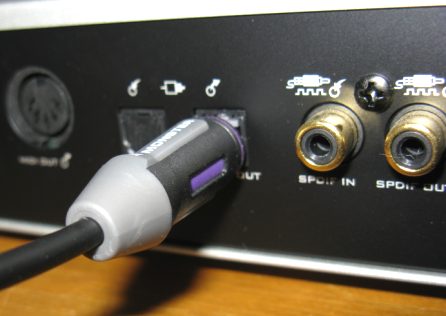

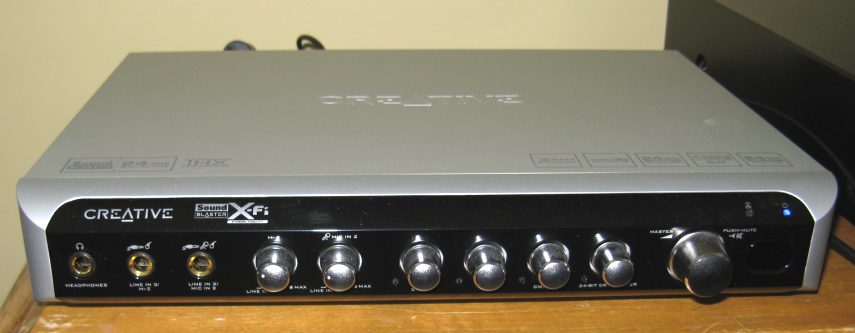

A good quality Creative X-Fi Elite Pro sound card which supports 24bit/192 kHz audio was used to output the digital audio stream:

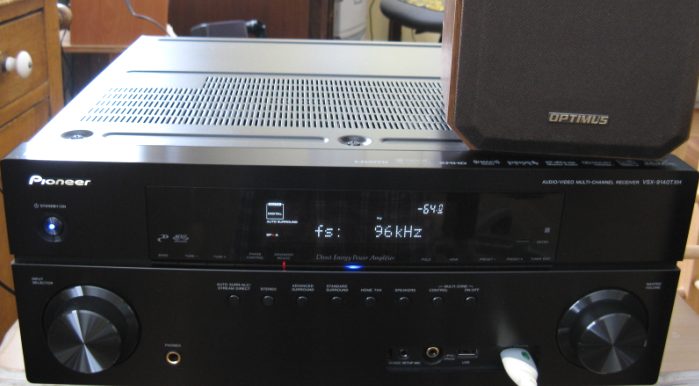

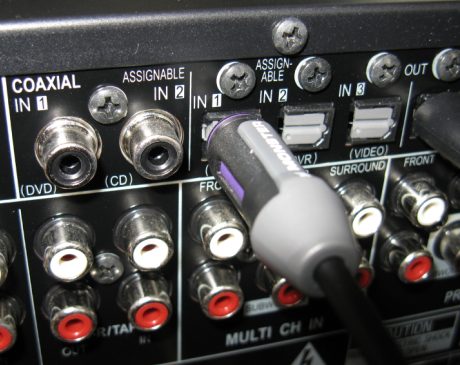

The SPDIF optical output of the sound card was coupled to the SPDIF input of a Pioneer VSX-9140TXH digital receiver and the audio
output to the speaker system was monitored by ear:
(WARNING: since the amplifier gain must set at very high levels to hear these
weak tones, it is extremely important to exercise great care to insure a normal level audio file is not played back accidently).


Example Results
The ability to hear such low level audio files depends of course on the S/N performance of the analog section of the amplifier/receiver.
A 1 kHz tone was used as it is in the range of high hearing acuity (maximum is about 3 kHz).
With the Pioneer amplifer, each audio file could progressively be heard to weaken as expected. Since the level display on the
receiver is calibrated in dB, a check was made between the 8bit-level tone and the 7th-bit level tone by noting the amplifier setting
for the higher-level 8-bit tone, then playing back the 7-th bit tone and increasing the amplifier gain to get approximately the same level.
This required an increase of about 6db = 20log(2) which is what is expected for a factor of 2 (a extra bit of audio) in signal level.
I judged that the weakest audio level discernible with this amplifier corresponded to the wav with a digital amplitude of 31 (or binary 11111) or the 5th bit. Since
full scale digital for a 24 bit signal is 8,388,607 (for a signed 24 bit integer), this represents roughly a digital signal/noise ratio
of 20log(31/8388607) or -109 dB which is consistent with the sound card and receiver specifications.
The technique above therefore can be used to aurally verify true 24 bit support, or more accurately bit support down to the lowest audible
bit as determined by the S/N of the amplifier/receiver.
The same playback testing method can of course be applied in other scenarios such as DLNA streaming applications.
Discussion
What happens if a 24 digital low level audio signal is truncated during downsizing to 16 bits? What does one expect to hear?
One possibility that the author has observed is the following:
For a weak audio signal in the lowest 8 bits, truncation of the signal to 16 bits from 24 bits will still leave the upper bits set to 1
during the NEGATIVE swing of the original 24 bit signal. Therefore, we will end up with 16 bit samples that swing from a zero sample value (during the
positive cycle of the original data) to a sample value of 1111111111111111 or -1 (corresponding to the negative values in the original samples).
This -1 value is a consequence of the 2's complement representation of a negative value in the original 24 bit sample!
Therefore the original simple 24 bit sine wave will become a 16 bit signal which swings from 0 (all 16 bits off) to -1 (all 16 abits set) and this will
occur at the same frequency as the original 24 bit audio signal and will certainly be audible in most sound systems.
The identical 16 bit signal will be heard no matter what the low level signal amplitude is (as long as it is restricted to the lowest 8 bits).
Therefore we can easily check if there is truncation by simply listening to playback with the set of low-level 24 bit samples described above.
This truncation effect has been observed by the author in a DLNA streaming configuration, using the test files described above,
demonstrating without doubt that 24 bits are being truncated to 16..
